Experiment

---

1 Getting started

To copy the code, click the button in the upper right corner of the code-chunks.

1.1 clean up

rm(list = ls())
gc()

1.2 custom functions

We defined a number custom functions, at Download custom_functions.R.

source("./custom_functions.R")

1.3 necessary packages

• tidyverse: data wrangling
• igraph: generate and visualize graphs
• parallel: parallel computing to speed up simulation
• foreach: looping in parallel
• doParallel: parallel backend for foreach
• ggplot2: data visualization
• ggh4x: hacks for ggplot2
• ggpubr: make visualizations publication-ready

packages = c("tidyverse", "igraph", "ggplot2", "parallel", "doParallel", "foreach", "ggh4x", "ggpubr",
    "plotly", "RColorBrewer", "grid", "gridExtra", "patchwork", "ggplotify", "ggraph", "gganimate", "RColorBrewer",
    "ggtext", "magick", "jsonlite", "lubridate", "ggtext")

invisible(fpackage.check(packages))
rm(packages)

---

2 import data

data <- read.csv("./rawdata/all_apps_wide_2026-02-12.csv")
times <- read.csv("./rawdata/PageTimes-2026-02-12.csv")

# cbind(data$participant.node,data$participant.role)[complete.cases(
# #cbind(data$participant.node,data$participant.role)),]

# data[, c('participant.bonus', 'participant.label')][!is.na(data$participant.bonus),]

---

3 results

On 12-2-2026, I recruited 100 Prolific participants, to populate a network of N=50 (with a 10% minority group).

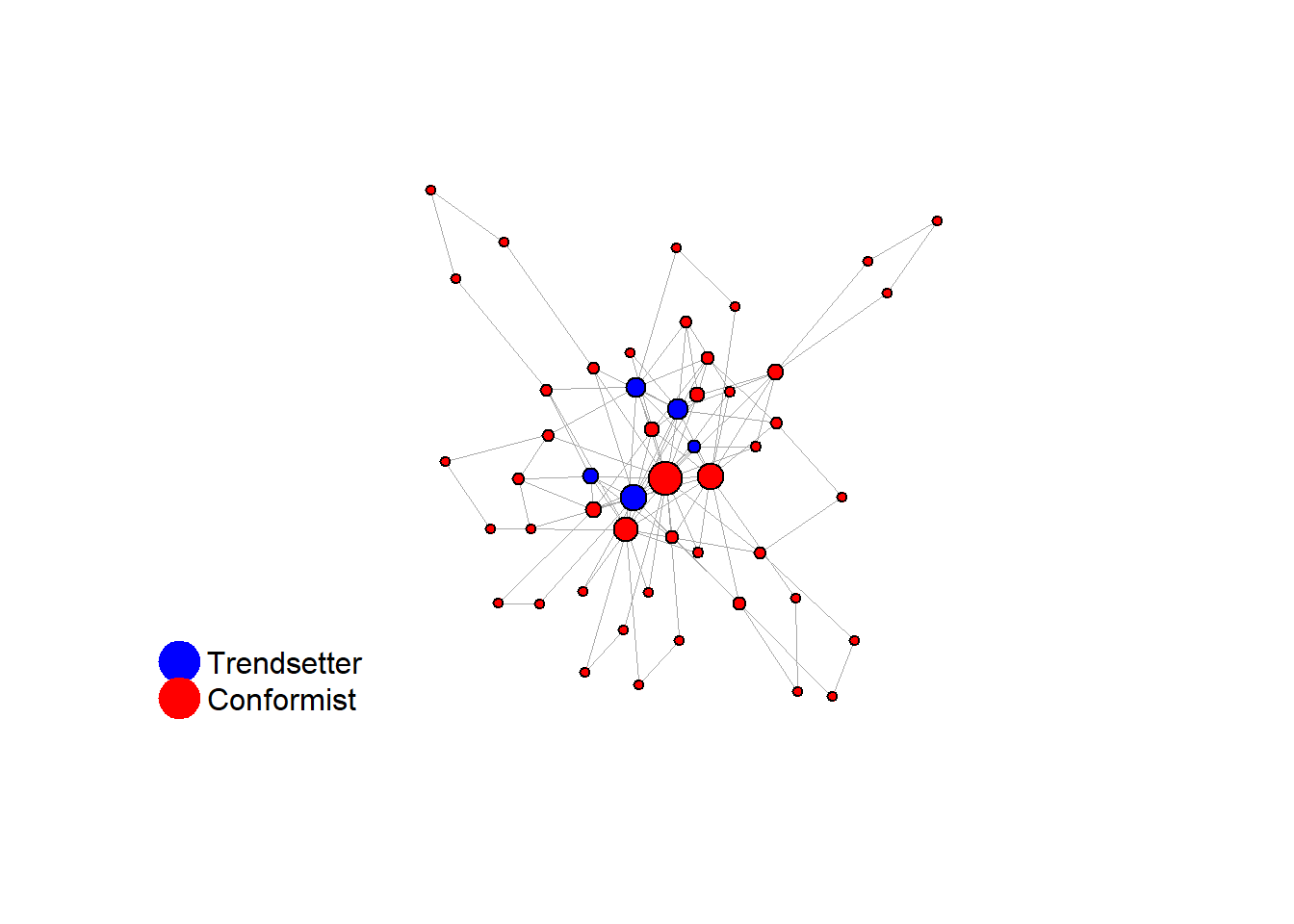

net <- jsonlite::fromJSON("./networks/network_test_n50.json")

g <- graph_from_adjacency_matrix(net$adj_matrix, mode = "undirected")
V(g)$role <- ifelse(net$role_vector == 1, "trendsetter", "conformist")

fplot_graph(g)

3.1 diagnostics

3.1.1 arrival from Prolific

# subset experimental session
data <- data[data$session.code == "bg6q9igc", ]
times <- times[times$session_code == "bg6q9igc", ]

# clean
test <- data %>%
    transmute(participant_id = participant.code, participant_label = participant.label, id_in_session = participant.id_in_session,
        consent_given = consent.1.player.consent, consent_timestamp = consent.1.player.consent_timestamp,
        role = participant.role, is_dropout = participant.is_dropout, dropout_app = participant._current_app_name,
        comprehension_retries = comprehension.1.player.comprehension_retries, passed_comprehension = !participant._current_app_name %in%
            c("consent", "comprehension"), choice = unpop.1.player.choice, failed_checks = participant.failed_checks,
        exit_early = participant.exit_early, participated = participant._current_page_name == "PaymentInfo") %>%
    filter(!is.na(consent_given)) %>%
    mutate(bot = ifelse(participant_label == "", 1, 0), bot = factor(bot, levels = c(0, 1), labels = c("Prolific participant",
        "Bot")), consent_timestamp = ymd_hms(consent_timestamp), final_state = case_when(failed_checks >
        0 ~ "Failed comprehension", exit_early == 1 ~ "Could not be grouped", participated ~ "Participated",
        TRUE ~ "Too late")) %>%
    arrange(consent_timestamp) %>%
    mutate(arrival_order = row_number())

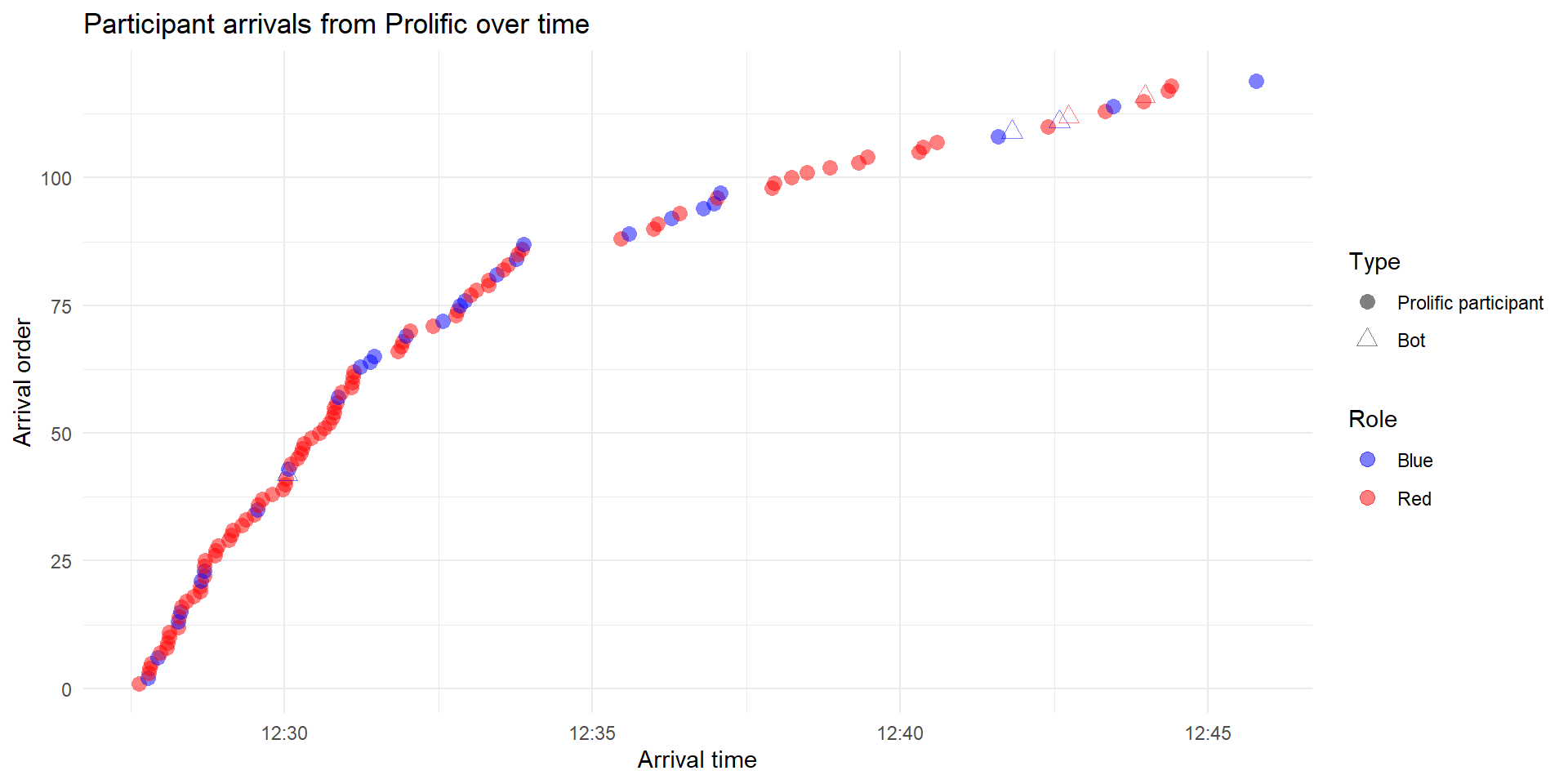

ggplot(test, aes(x = consent_timestamp, y = arrival_order)) + geom_point(aes(color = role, shape = bot),
    size = 3, alpha = 0.5) + scale_shape_manual(values = c(16, 2)) + scale_color_manual(values = c("blue",
    "red")) + labs(x = "Arrival time", y = "Arrival order", color = "Role", shape = "Type", title = "Participant arrivals from Prolific over time") +
    theme_minimal()

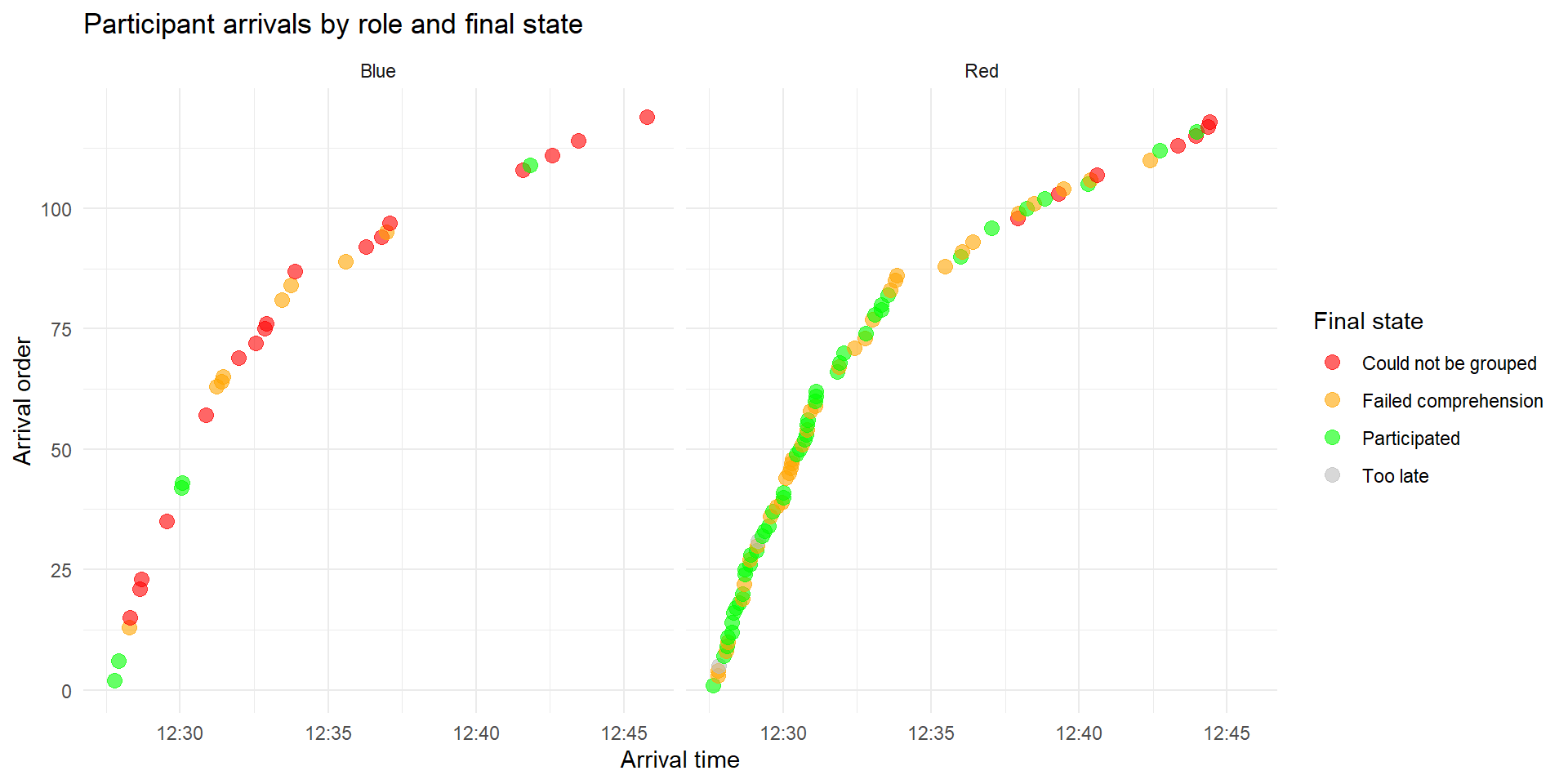

ggplot(test, aes(x = consent_timestamp, y = arrival_order)) + geom_point(aes(color = final_state), size = 3,
    alpha = 0.6) + scale_color_manual(values = c(Participated = "green", `Failed comprehension` = "orange",
    `Could not be grouped` = "red", `Too late` = "gray")) + facet_wrap(~role) + labs(x = "Arrival time",
    y = "Arrival order", color = "Final state", title = "Participant arrivals by role and final state") +
    theme_minimal()

fshowdf(table(test$final_state, test$role), caption = "participant status by role")

participant status by role

	Blue	Red
Could not be grouped	17	7
Failed comprehension	8	35
Participated	5	45
Too late	0	2

3.1.2 progression through the experiment

times <- times %>%
    mutate(timestamp = as_datetime(epoch_time_completed))

arrival_times <- times %>%
    group_by(participant_id_in_session) %>%
    summarize(arrival_time = min(timestamp), .groups = "drop")

times <- times %>%
    left_join(arrival_times, by = "participant_id_in_session") %>%
    mutate(participant_ordered = factor(participant_id_in_session, levels = arrival_times %>%
        arrange(arrival_time) %>%
        pull(participant_id_in_session)))

times_roles <- times %>%
    left_join(test %>%
        select(id_in_session, role), by = c(participant_id_in_session = "id_in_session"))

page_levels <- unique(times$page_name)

times_roles <- times_roles %>%
    mutate(page_name = factor(page_name, levels = page_levels))

custom_colors <- c(InitializeParticipant = "#c6dbef", ConsentPage = "#9ecae1", IntroductionPage = "#6baed6",
    ComprehensionPage = "#3182bd", NetworkFormationWaitPage = "#ffcc99", DecisionPage = "#ff9966", ResultsWaitPage = "#ff6666",
    ResultsPage = "#cc0033", FinalGameResults = "#660000")

# colored y-axis labels based on role
y_labels_colored <- times_roles %>%
    select(participant_ordered, role) %>%
    distinct() %>%
    arrange(participant_ordered) %>%
    mutate(label_colored = case_when(role == "Red" ~ paste0("<span style='color:red'>", participant_ordered,
        "</span>"), role == "Blue" ~ paste0("<span style='color:blue'>", participant_ordered, "</span>"),
        TRUE ~ paste0("<span style='color:darkgrey'>", participant_ordered, "</span>")))

# create a named vector for scale_y_discrete labels
y_labels_vector <- y_labels_colored$label_colored
names(y_labels_vector) <- y_labels_colored$participant_ordered

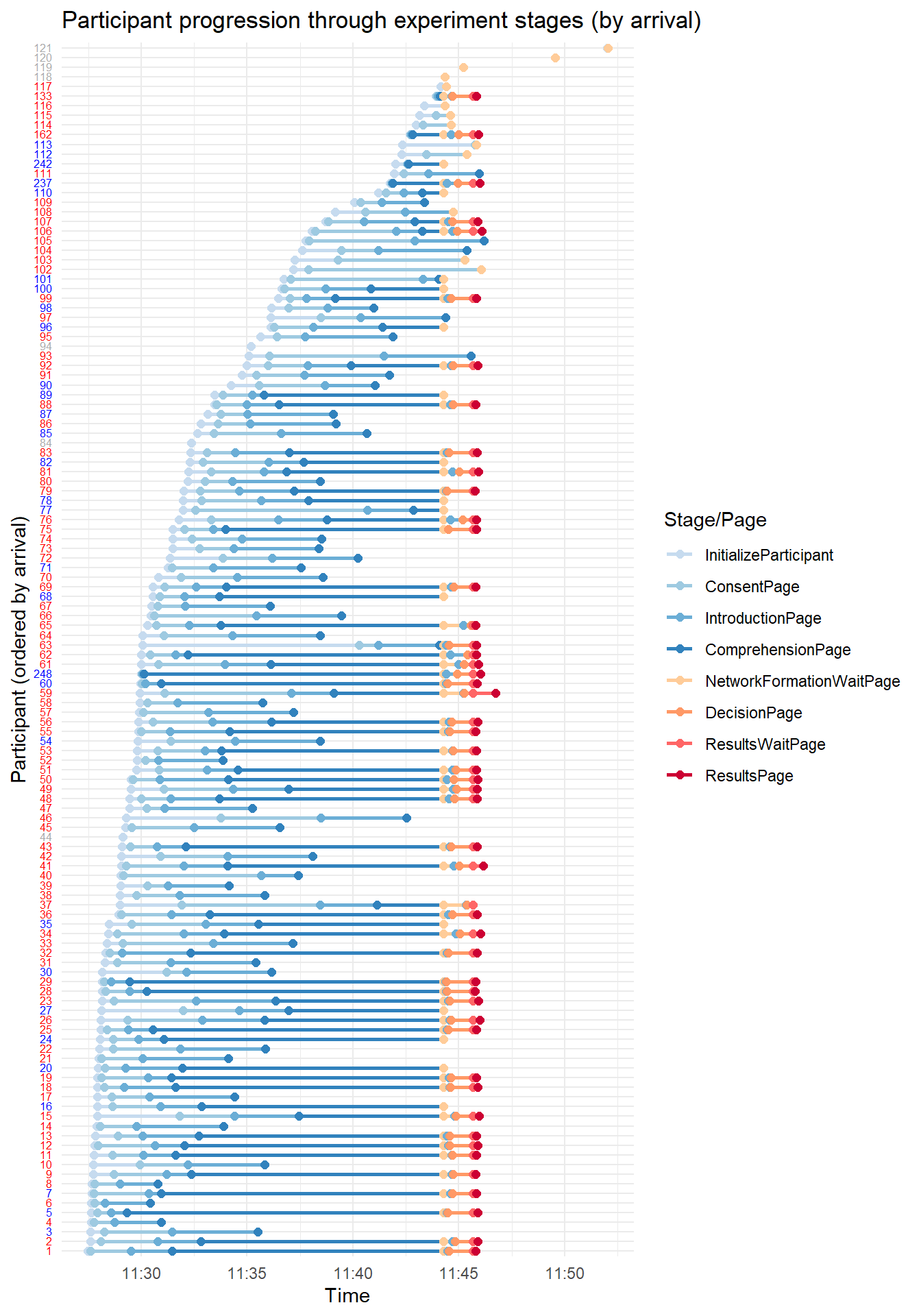

ggplot(times_roles[times_roles$round_number == 1, ], aes(x = timestamp, y = participant_ordered, color = page_name)) +
    geom_line(aes(group = participant_id_in_session), size = 1) + geom_point(size = 2) + scale_color_manual(values = custom_colors) +
    scale_y_discrete(labels = y_labels_vector) + labs(x = "Time", y = "Participant (ordered by arrival)",
    color = "Stage/Page", title = "Participant progression through experiment stages (by arrival)") +
    theme_minimal() + theme(axis.text.y = element_markdown(size = 6))

3.1.3 dropout

dropout_long <- data %>%
  filter(participant._current_page_name == "PaymentInfo") %>% # only completed participants
  filter(participant.label != "") %>% # exclude bots (participants controlled by experimener have no label)
  select(
    participant.label,
    participant.role,
    matches("unpop\\.[0-9]+\\.player\\.is_dropout")
  ) %>%
  pivot_longer(
    cols = matches("unpop\\.[0-9]+\\.player\\.is_dropout"),
    names_to = "round",
    values_to = "is_dropout"
  ) %>%
  mutate(
    round = str_extract(round, "[0-9]+"),
    round = as.numeric(round)
  )


# get first dropout round per participant
dropout_summary <- dropout_long %>%
  group_by(participant.label, participant.role) %>%
  summarise(
    event = any(is_dropout == 1, na.rm = TRUE),
    dropout_round = ifelse(
      event,
      min(round[is_dropout == 1], na.rm = TRUE),
      30
    ),
    .groups = "drop"
  )

# count cumulative dropouts
cum_dropout_role <- dropout_summary %>%
  filter(event == TRUE) %>%
  count(participant.role, dropout_round) %>%
  group_by(participant.role) %>%
  complete(dropout_round = 1:30, fill = list(n = 0)) %>%
  arrange(participant.role, dropout_round) %>%
  mutate(
    cumulative_dropout = cumsum(n)
  ) %>%
  ungroup()

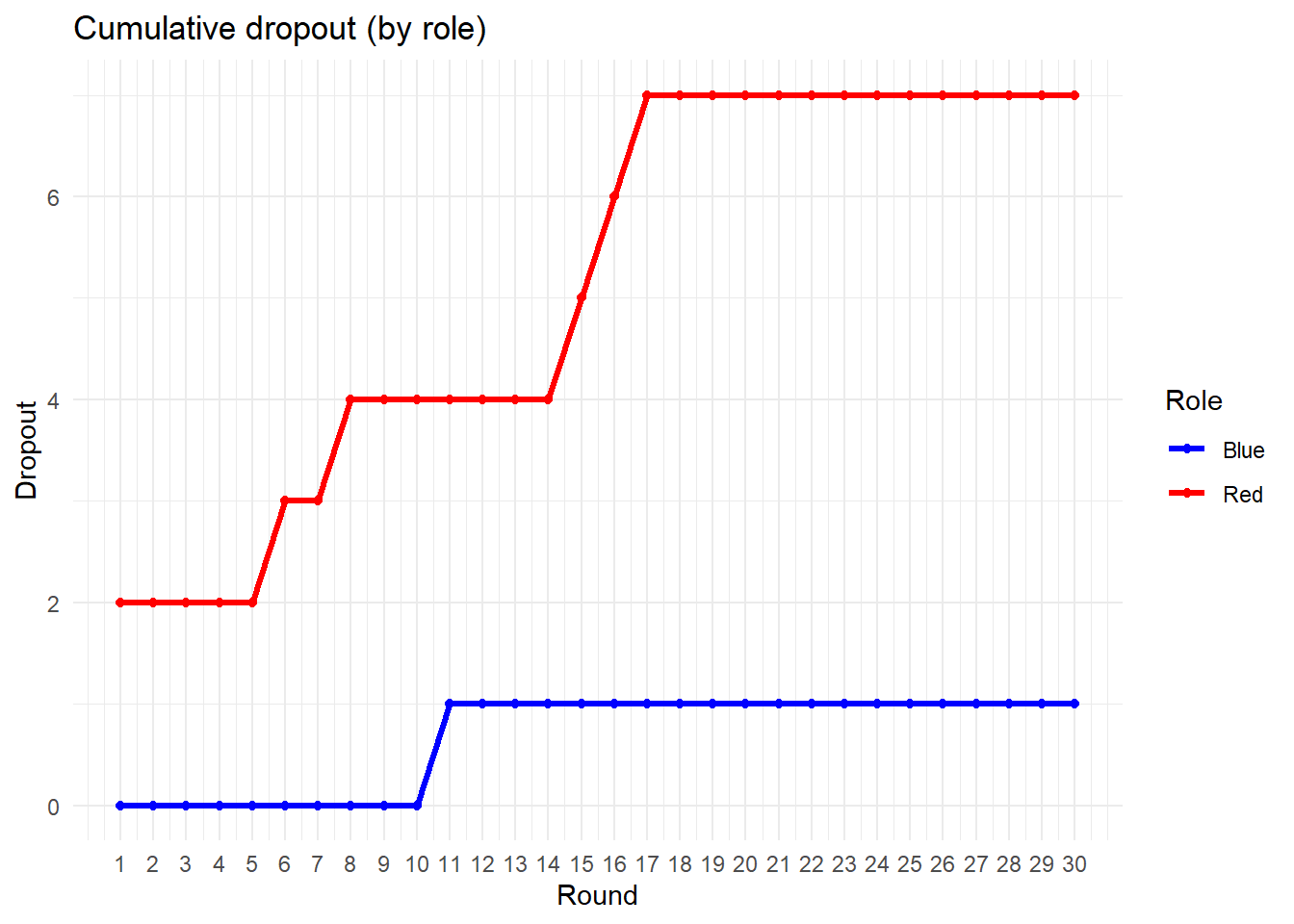

ggplot(cum_dropout_role,
       aes(x = dropout_round,
           y = cumulative_dropout,
           color = participant.role)) +
  geom_line(linewidth = 1.2) +
  geom_point() +
  scale_x_continuous(breaks = 1:30) +
  scale_color_manual(
    values = c(
      "Red" = "red",
      "Blue" = "blue"
    )) +
  labs(
    x = "Round",
    y = "Dropout",
    color = "Role",
    title = "Cumulative dropout (by role)"
  ) +
  theme_minimal()

---

3.2 unpopular norm spread

# choice behavior over rounds:
df_long <- data %>%
  filter(participant._current_page_name == "PaymentInfo") %>% # filter actual participants
  select(participant.label, participant.role, participant.node, starts_with("unpop.")) %>% #also include network node.

  pivot_longer(
    cols = matches("unpop\\.\\d+\\.player\\.choice$"),  # only choice columns
    names_to = "round",
    values_to = "choice"
  ) %>%

  mutate(
    round = as.integer(gsub("unpop\\.(\\d+)\\.player\\.choice", "\\1", round)),
    is_bot = ifelse(participant.label == "", TRUE, FALSE)
  ) %>%
  select(participant.label, participant.node, participant.role, round, choice, is_bot)

# identify round of dropout:
first_dropout <- dropout_long %>%
  filter(is_dropout == 1) %>%
  group_by(participant.label) %>%
  summarise(dropout_round = min(round),
            .groups = "drop")

# and add to the df:
df_long <- df_long %>%
  left_join(first_dropout, by = "participant.label")

# aggregated
df_plot <- df_long %>%
  group_by(round) %>%
  summarise(
    pct_choice1 = mean(choice, na.rm = TRUE) * 100,  # proportion * 100
    n = n()
  )

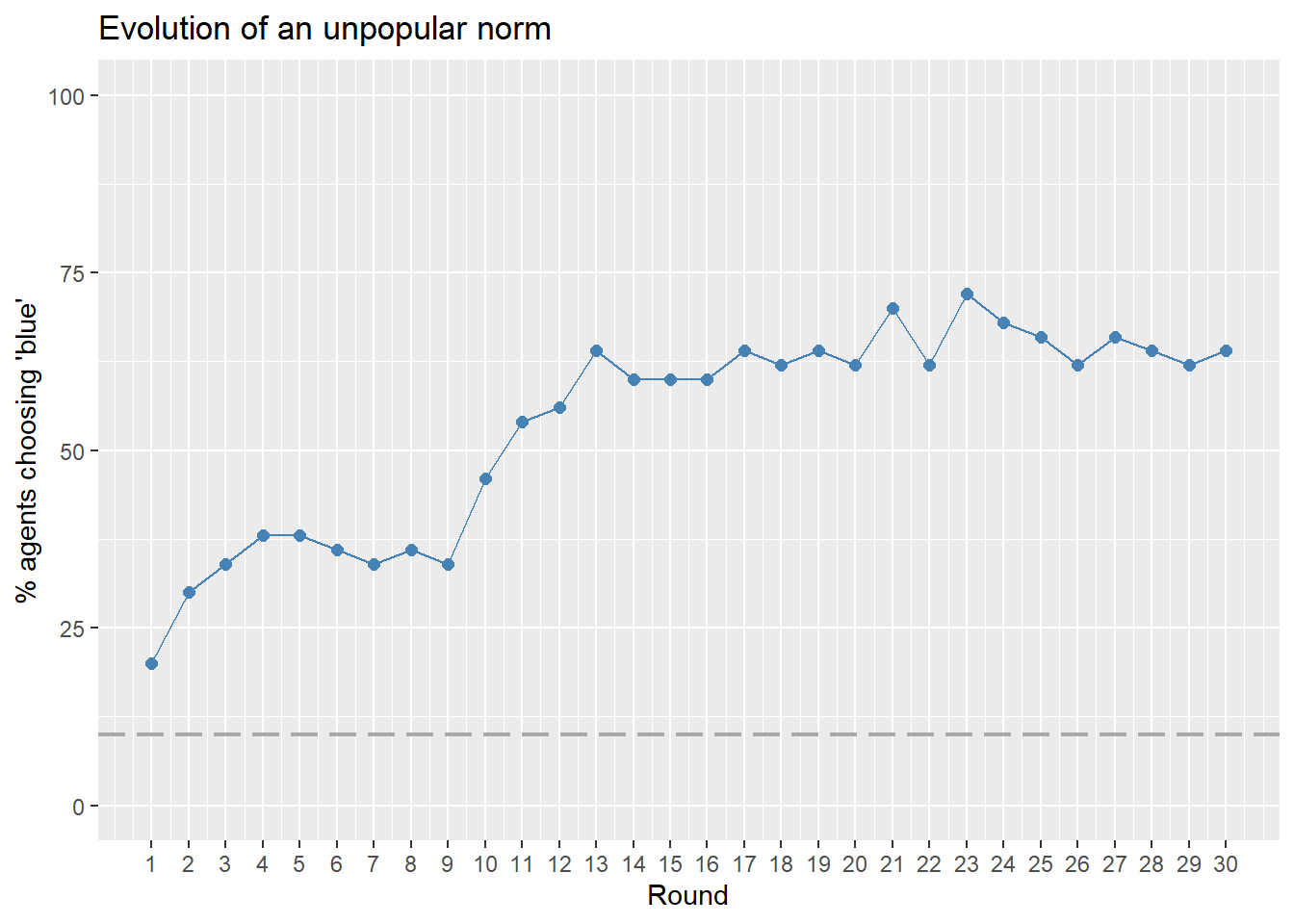

ggplot(df_plot, aes(x = round, y = pct_choice1)) +
  geom_line(group = 1, color = "steelblue", size = .5) +
  geom_point(color = "steelblue", size = 2) +
   geom_hline(yintercept = 10, linetype = "longdash", color = "darkgrey", size = 0.8) +  # dashed line at 10
  scale_x_continuous(breaks = df_plot$round) +
  scale_y_continuous(limits = c(0, 100)) +
  labs(
    x = "Round",
    y = "% agents choosing 'blue'",
    title = "Evolution of an unpopular norm"
  )

#sort by node
df_long <- df_long %>%
  arrange(participant.node) %>%
  select(-participant.label)

df_long$dropout_round[is.na(df_long$dropout_round)] <- 30 #non dropouts, set to 30.

# make roles consistent with utility function roles
df_long$role <- ifelse(df_long$participant.role == "Blue", "trendsetter", "conformist")

# specificy incentive structure parameters
params = list(s = 15, e = 10, w = 40, z = 50, lambda1 = 5, lambda2 = 1.8)

df_long$id <- df_long$participant.node + 1 #nodes are 0-indexed

#add degree
deg <- degree(g)
df_long <- df_long %>%
  mutate(degree = deg[id])

calculate_round_utilities <- function(current_round, df_long, network, params) {
  # previous round data
  df_prev <- df_long %>%
    filter(round == current_round - 1) %>%
    select(id, role, choice)

  # current round data
  df_curr <- df_long %>%
    filter(round == current_round)

  # compute utilities
  df_curr <- df_curr %>%
    rowwise() %>%
    mutate(
      util_0 = futility(agent_id = id, choice = 0,
                         agents = df_prev,
                         network = network,
                         params = params)$utility,
      util_1 = futility(agent_id = id, choice = 1,
                         agents = df_prev,
                         network = network,
                         params = params)$utility
    ) %>%
    ungroup()

  return(df_curr)
}

##calculate_round_utilities(2, df_long, network = g, params = params)

#compute utilities for all rounsd (except round 1)
max_round <- max(df_long$round)
df <- map_dfr(2:max_round, ~calculate_round_utilities(.x, df_long, g, params))

# identify best replies
df <- df %>%
  mutate(
    predicted_choice = ifelse(util_1 > util_0, 1, 0),
    best_reply = (choice == predicted_choice)  # TRUE if agent picked the choice with highest utility
  )


df_summary <- df %>%
  mutate(
    preferred_choice = ifelse(role == "trendsetter", 1, 0),    # define preferred option by role
    chose_preferred = (choice == preferred_choice)            # TRUE if they picked their preferred option
  ) %>%
  group_by(round, role) %>%
  summarize(
    n_agents = n(),
    prop_preferred = mean(chose_preferred),   # fraction that chose their preferred option
    prop_best_reply = mean(best_reply),       # fraction that picked the highest-utility choice
    .groups = "drop"
  )

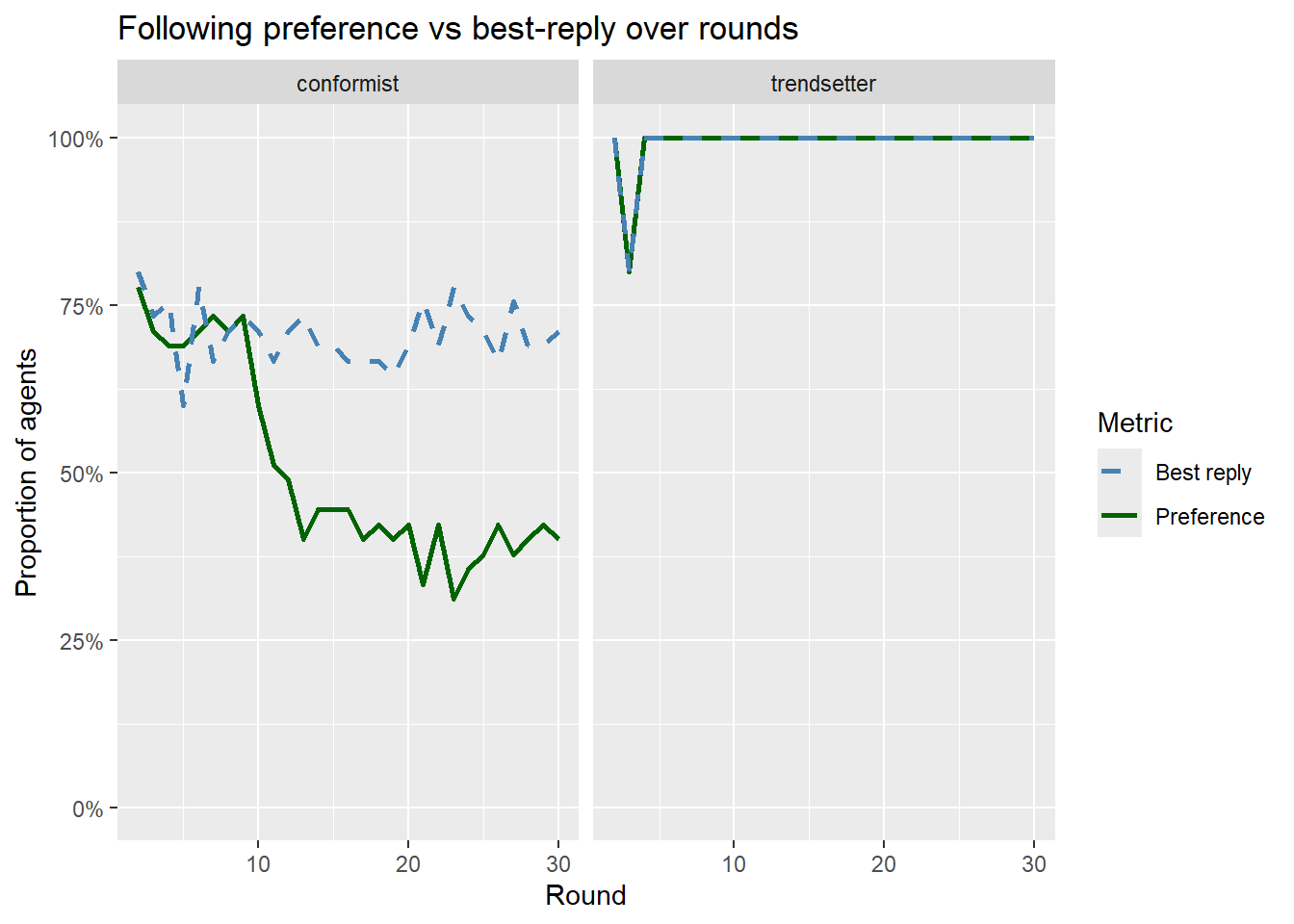

ggplot(df_summary, aes(x = round)) +
  geom_line(aes(y = prop_preferred, color = "Preference"), size = 1) +
  geom_line(aes(y = prop_best_reply, color = "Best reply"), size = 1, linetype = "dashed") +
  facet_wrap(~role) +
  scale_y_continuous(labels = scales::percent_format(accuracy = 1), limits = c(0,1)) +
  scale_color_manual(values = c("Preference" = "darkgreen", "Best reply" = "steelblue")) +
  labs(
    x = "Round",
    y = "Proportion of agents",
    color = "Metric",
    title = "Following preference vs best-reply over rounds"
  )

---
